(v 1.0)
To check and download all versions of this guide, go at the following link.
Safety and usage cautions
Before installing our products, we recommend you to consult the section about safety and usage cautions at the link below
System overview

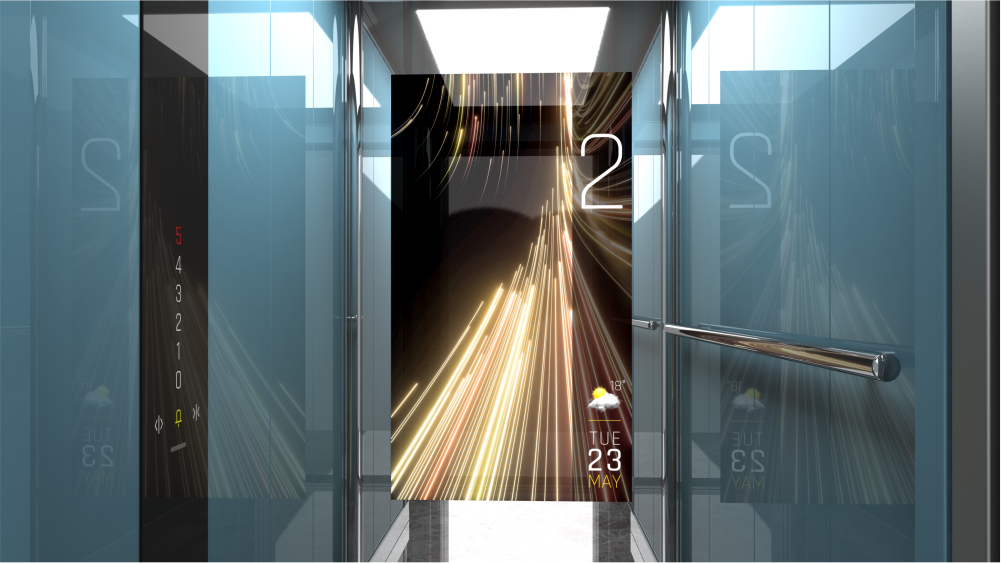

Matisse Mirage is a DMG application that combines technology with refined aesthetics. The MIRAGE function, integrated with the Matisse system, introduces a true “virtual window” capable of simulating the movement of the car, transforming the space into a dynamic experience. In this way, the passenger not only perceives a pleasing visual effect, but also experiences an enhanced sense of motion, contributing to a more engaging and immersive overall ride experience.
With the MIRAGE application, all elevator functions and graphic theme customizations configured via the MosaicONE cloud remain available.
During elevator travel, the MIRAGE video fully covers the content generated with MosaicONE; upon arrival at the floor, such content is automatically displayed.

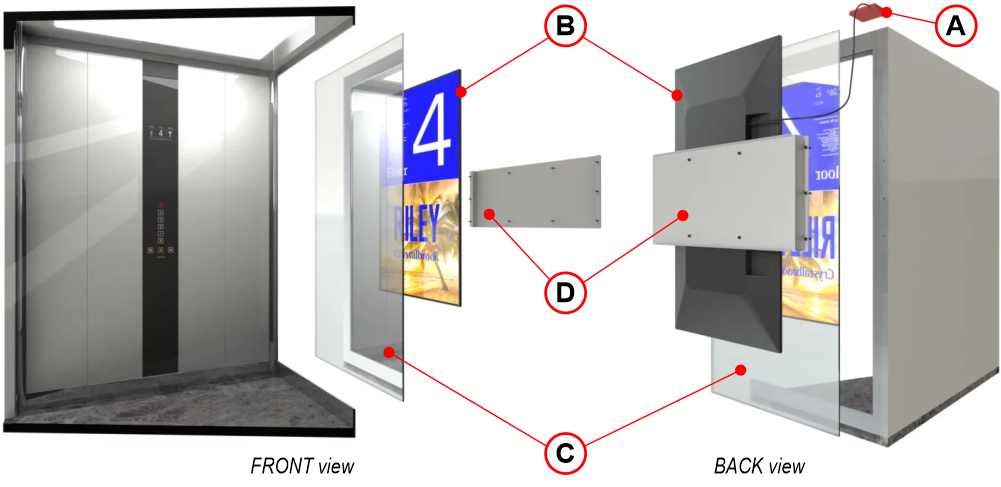

A) Matisse CPU – Supplied with an SD card preloaded with the .mp4/.avi video files required for the application to operate.
B) Monitor / TV screen – There is no single standard; therefore, the device must be selected for each specific installation based on key factors, including:
• Car size and structure
• Installation constraints
• Environmental conditions
C) Mirror glass – The mirrored glass serves as the architectural element replacing one of the cabin walls and is installed in front of the monitor. When the monitor is off, the panel appears as a standard mirror; during video playback, it allows the images displayed on the rear-mounted monitor to be seen through the surface. This component is also considered custom, for the same reasons outlined above, as it is closely linked to the characteristics of the monitor.
D) Custom mounting brackets – This is also a custom kit.
Wiring

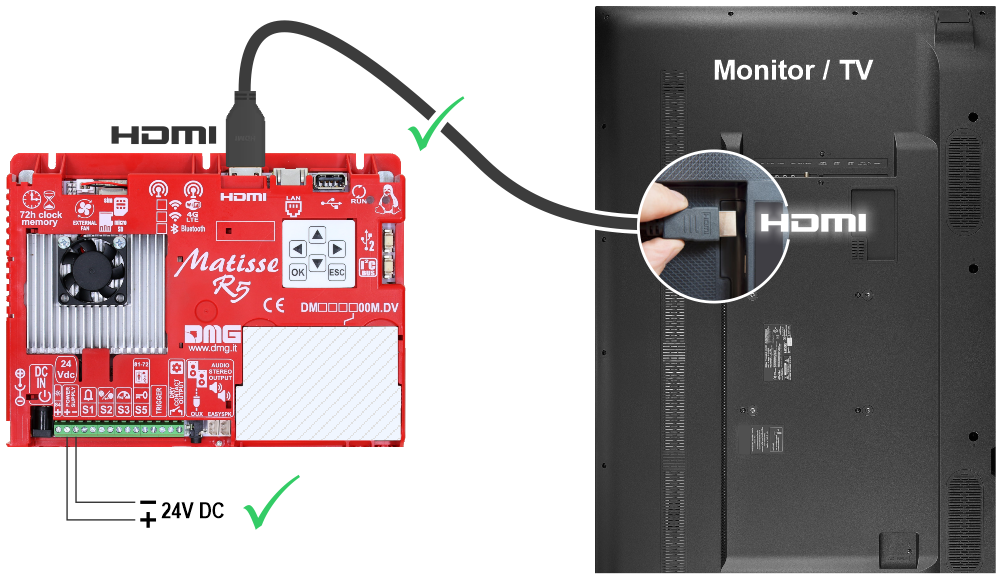

Power the Matisse CPU and connect it to the monitor/TV using an HDMI cable.
Setting on-board parameters
Navigating the on-board Menu
Use the 6-key pad on the back of the device to access and navigate the on-board Menu of the Matisse.
Press OK to enter the menu.
Alternatively, connect a mouse to the USB port. When the cursor appears on the screen, click 5 times on the top right of the screen to enter the menu.
To also connect a keyboard, you need to connect a dongle device to the USB port and then connect the mouse and keyboard wirelessly.
Setting the menu navigation language
Setting the Matisse MIRAGE parameters

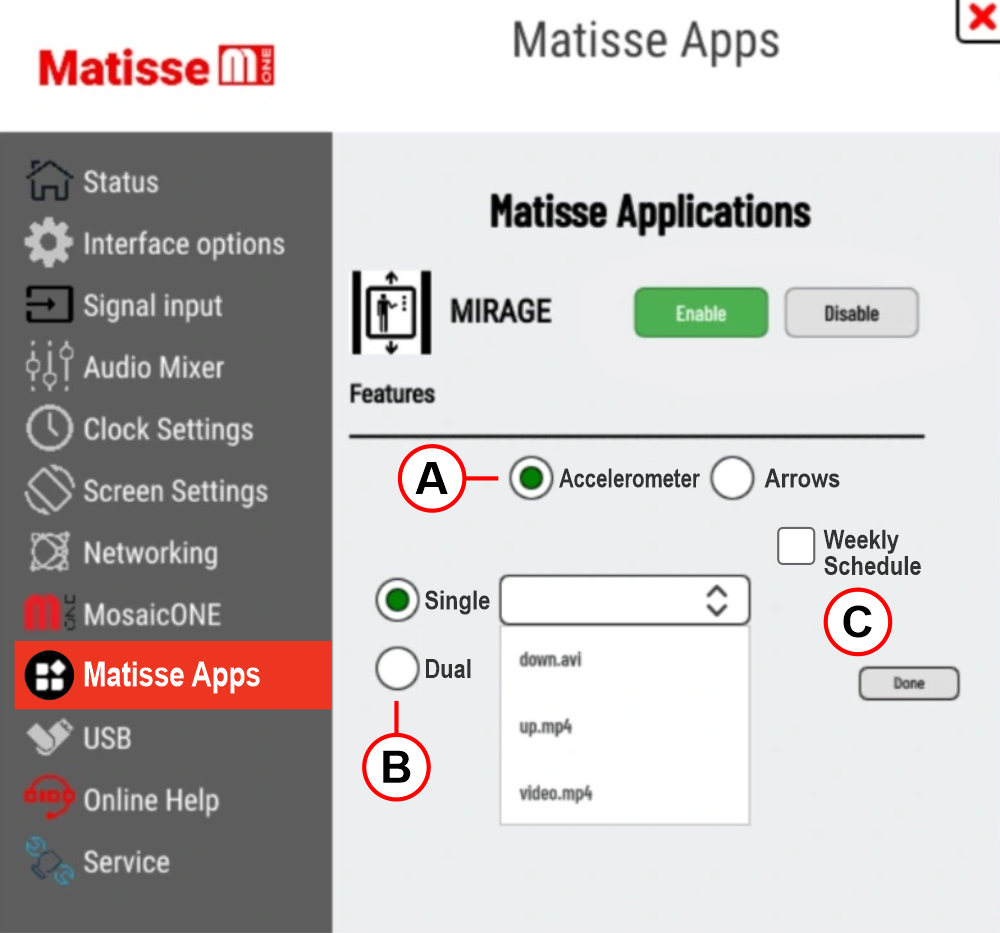

Access the Matisse Apps menu and enable the MIRAGE functionality by pressing the Enable button.
The configurable parameters are described below.
A) Operating mode
Accelerometer – If no data is available from the controller, the selected video plays automatically according to the car’s movement, via the built-in accelerometer.
Arrows – In this mode, video playback depends on a specific external input, either from the physical direction arrow inputs or from a dedicated protocol with the DMG controller or third-party systems.
B) Video selection
Single mode – The same video is played for both directions of travel
Dual mode – Rotation – In this mode, the video is rotated by 180 degrees when the car is traveling upward.
Dual mode – Dual Video – You can choose a different video for each travel direction.
C) Weekly schedule
This function allows you to schedule weekly playback of the videos stored on the SD card.
