2″ RAFFAELLO Display

(v 1.1)

To check and download all versions of this guide, go at the following link.

Safety and usage cautions

Before installing our products, we recommend you to consult the section about safety and usage cautions at the link below.

Mounting

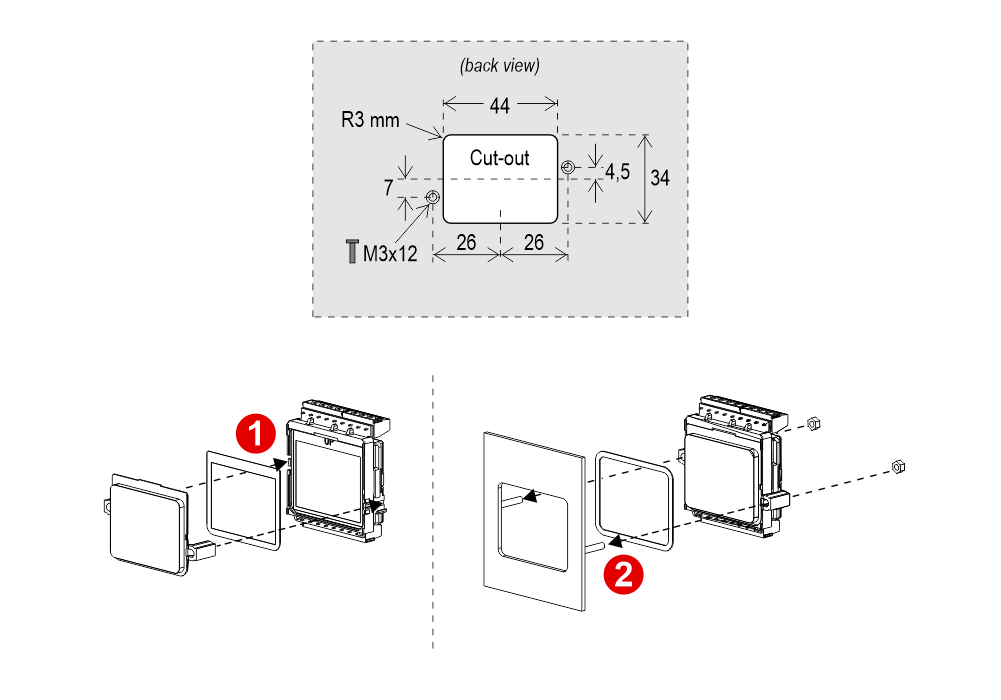

Flush Mounting (back mounting)
With welded pins on 1,5÷2 mm pushbutton panel
With D13 Screen (frontal mounting)
Frontal mounted on 0,7/2 mm pushbutton panel
With DZ1 Screen (frontal mounting)
Frontal mounted on 0,7/2 mm pushbutton panel

Wiring Instructions

POSITION & DIRECTION Input Wiring

Pitagora 4.0
DMG
CAN serial protocol
FLOOR

DMG
3-wires serial
Encoder DEUM
For more details please refer to the Encoder DEUM support page.

DMG
CAN serial protocol


DMG
3-wires serial
Other Controllers
Proprietary CAN protocol


1 Wire / Floor
10 floors max.


1 Wire / Segment29 floors max. (-9, 0, 19)

Gray / Binary72 floors max. (-9, 0, 62)

TKE/MEA/Autinor

SERVICE MESSAGE Wiring

Parallel display

CAN serial display (*)

(*) – Service messages can also be piloted, through serial bus, in two different ways:

Settings

Setup KeyExit / BackAccess Menu KeyValue setting (>3 sec.)
Navigation menu keys
General
The display navigation menu is in English only; to see the correct menu items we recommend setting the DIDO website language to English.

MENUMENU ITEMAVAILABLE CHOICESINPUTS
ParallelCANBUS
Input Serial / 1 wire per floor / segment
Gray / Binary / Pos.Sensor
TKE / MEA / Autinor / CAN DMG
OptionsInterface OptionsArrow ConfigurationDirection / Next Dir.
Car at FloorNo / Yes
CAN Baudrate250k, 125k, 10k, Auto
Convert MezzanineNo / Yes
Offset Value-9 / ... / 0 / ... / +9
First VisualizationBlank / Zero
Common SelectionNegative / Positive
Arrow TypeFixed arrows / Scrolling arrows
Enable AUX Signals10 + 0 / 6 + 4
Input Filtering0 ... 20
Screensaver timerDisabled / 10-20 / 30-60 / 60-120
Graphic OptionsFontDado / Classic Bold / Lagoon / Dot Matrix
Flat StyleSymbol colorWhite / Red / Orange / Blue / Gray / Black
Background colorBlack / Pacific Blue / Navy Blue / Reef Blue / Light Gray /White / Orange / Red
SpecialsWhite-Green / White-Lilac / Purple-Yellow / White-Gray
Gradient StyleStyleBlack & White / Red Passion / Gray Goose / Blue Shades
ColorGalaxy / Ocean Dream 2/1 / Reef Blue / Purple haze / ...
Floor SymbolsShow / Hide
ArrowsShow / Hide
Fixed Symbols PositionsNo / Yes
Filter Blinking SignalsNo / Yes
Message Mode OrientationAlternating / Fixed
OrientationLandscape (Horiz.) / Portrait (Vert.) / Rev.Landscape / Rev.Portrait
Signal Inputs ConfigurationsInput S4
AUX Signals ConfigurationsAUX Signal 1 / 2 / 3 / 4
Reset All Settings
?DEMO modeNo / Yes
Firmware Version / Life Time (internal use)
Floor NumbersNumbers / LettersChoose the Numbers / Letters
Arrow setting up
1) – Direction arrows (default)
2) – Next direction arrows (instructions below)


Next Direction Arrows enabled from input
Arrows light up only on the position indicators with the “NEXT DIRECTION” input powered.If the DEUM Encoder is used, please refer to the relevant manual

Next Direction Arrows locally programmed
Through the addressing procedure one can permanently assign to each indicator the information of the floor on which it is mounted; in this way, next direction arrows only light up at the floor where the elevator car is positioned.

Addressing procedure

1) – Connect all position indicators to the ENCODER or PLAYBOARD controller.
2) – Position elevator car on the floor of the Display which needs to be directed.
3) – Verify that the characters/numbers/letters visualized are the desired ones.
4) – Press and hold the ADV key and wait for the display to flash for 3 seconds to confirm.
5) – Repeat procedure for each floor.
If the DEUM Encoder is used, please refer to the relevant manual
Set up CAN BUS protocol trasmission speed
Intermediate floors visualization
Set up floors OFFSET
Set up first visualization

1) – It does not display any numbers
2) – Lowest floor
Set up Parallel position common input
Set up scrolling arrows

1) – Fixed arrows
2) – Scrolling arrows
Enable auxiliary signals

a) – 10 Floor parallel inputs (X01÷X10) + 0 AUX Signals
b) – 6 Floor parallel inputs (X01÷
X06) + 4 AUX Signals (X07÷X10)
Set up the display delay of floor change
The display delay helps avoiding visualization errors during floor change.
Associate the floor position indicator with the duplex controllers
The parameter allows to assign the display (floor) to a unique controller. The Duplex-Light typology includes 2 controllers with a single BDU line and a maximum of 2 displays at the main floor.
This parameter can only be set with the CAN protocol on the Pitagora 4.0 system.0) – To be associated with the lift car position indicator.
1) – The display will show the information of the MASTER controller.
2) – The display will show the information of the SLAVE controller.
3/4/5/6) – Future uses.
Enable energy saving function

“Energy saving” mode to reduce consumption when idle.
Set up Font
Set up flat Style Color
Set up gradient Style Color
Show/Hide position
Show/Hide arrows
Set up Symbols position
Landscape orientation modes only.
If “Yes”, the symbols will stay in fixed positions independently of the arrow status.
Signalizations (visualization)

1) – Fixed or blinking signalizations (input from controller).
2) – Fixed signalizations.
Set up Viewing mode of signalization
Set up display orientation
Set up service message inputs
Set up auxiliary signal
Restore the factory settings
The display original factory settings will be restored and configurations will be deleted.
Floor customizations
1) Car at floor

2) Set up Floor Numbers / Letters

Datasheet

Raffaello 2″

Dimensions62×68 mm (STD)
62×76 mm (DZ1)
55×68 mm (D1)
Screen40,8×30,6 mm / 320×240 pixel
Power supply (position input)12÷24V DC ±10%
Absorption12V DC: Max 49mA • 24V DC: Max 36mA
Indicators inputsS4:
12÷24V DC ±10%
Operating temperature-10°C ÷ +50°C

Video Tutorial

The graphics parameters configuration

Offset value

The common programming

Firmware

Troubleshooting

Fault description Raffaello 2"
Installation errors The display does not light upCheck for the presence of 12/24VdC voltage.
Make sure that the type of voltage complies with that required (direct voltage, not alternating, not rectified).
Check the correct polarity on the power terminals.
Press the PRG key and make sure that the menu does not appear. In this case the screen is black but without input it could give the idea of being turned off.
The display does not show numbers and/or arrowsMake sure that the type and voltage value comply with those required for the inputs, make sure you have correctly set the type of common.
Long presses of the PRG key are not detected by the display.Update the display to the latest firmware version.
Error messages BLOCKED DEVICE INSERT CODEIf this message appears when you turn on the device, it means that it was not unlocked by mistake during production.
Please contact DMG.
The display shows the indication "E" followed by a number XIn this case, it is a generic error indication due to an incorrect setting of the display. Please contact DMG
Display defects The display shows vertical linesIf the lines are fixed and black, please contact DMG.
The display shows horizontal lines
The display is whitePlease contact DMG.
The display has inverted colors or with a "negative" effectPlease contact DMG.

Certificates

Download

ReferenceVersionLink
1.1 (current version)Download PDF
